Python Image Processing on Azure Databricks – Part 1, OpenCV Image Compare

I have been working with Azure Databricks the past few months and am having more fun than I probably should admit online. The collaborative notebooks are awesome, they are the best of Zeppelin and Jupyter combined into one cohesive experience. The simplicity of using jobs makes scheduling and reoccurring runs a breeze. Performance is fast; processing 500 GB.. no problem, feature engineering large data sets.. go for it.  With auto-scaling and auto-terminating of clusters one can accommodate truly big data and only use the compute power needed when it is needed.

For these reasons, and others, I am finding it hard not to work in Azure Databricks.

az_db_logo

Why do Image Comparison on Azure Databricks

I need to compare images – easy right, let’s just run a simple script locally in Python and call it done, well hold on,  that is not as fun of a blog article.. and there is more to it. Ideally the complete solution should be able to automatically process ‘n’ number of base images against images pulled from various web sites and record visual differences, as well as, text differences from the images..  Ah ha, now you are interested. (maybe a little?)

Azure Databricks fits perfectly for the following reasons: 1) it scales, 2) can schedule my scripts 3) simplify library management 4) integrates with various Azure storage options.

Before we start, let’s break this giant ball of fun into bite size parts to help you the reader consume and me the writer manage this post (if I am being honest I am being selfish here and breaking this up mostly for me).

Here is how I have this entire solution broken out, this is part 1 (as appropriately stated in the title)

Let’s Get Started – Set-Up Azure Databricks Cluster

I am going to assume, which has never worked well for me, that if you are reading this you have some understanding of Microsoft Azure. If not you can always start at – What is azure.

Create Azure Databricks Resource

Log in to the Azure Portal.

You can add a new resource from the top left, or if you are in a Resource Group there is an Add button towards the top.

Create_Resource_mrked

In the resource search bar start typing databricks. Then select Azure Databricks.

databricks_search

Clicking Create on the Azure Databricks Service resource page will open the create resource blade.

Azure Databricks needs a workspace name, subscription resource group, location and pricing tier. My location is Central US as this is where I am located and where my data is stored in Azure as well. Yours may very well be different.

The standard pricing tier is all we need for this project. If you wanted to implement security then check out the premium tier.

db_create_full

After clicking create, and waiting about 1-2 minutes, you should have the Azure Databricks Service resource available in your defined resource group.

Create Azure Databricks Cluster

Clicking the Azure Databricks Service resource takes you into the resource blade. Here there is some great documentation to help you gain proficiency with Azure Databricks. Click the Launch Workspace  button to take you into the workspace.

launch_ws

After a few seconds of authenticating, you will see the workspace landing page. the left navigation bar lets you move to clusters, jobs, databases, etc. The center of the screen gives you links to create new items, review documentation and list your most recent documents.

db_portal

Right now we can’t really do anything without a cluster, so let’s create one. You can click the Cluster link under New of click Clusters in the navigation bar.

cluster_icon

Yup, no clusters. Click the Create Cluster button to add our first cluster.

Empty_Clusters

There seems to be a lot going on here, so let’s simplify.

Custer Type: Let’s use Standard so we can utilize auto terminate. We would consider Serverless Pool if we had multiple users accessing the same cluster as it help prevent contention while sharing resources. There are a few other benefits, but for this project, standards is a good pick.

Cluster Name: this is up to you

Databricks Runtime: 4.0 Apache Spark 2.3

Python Version: 3

Driver Type: Same as worker

Worker Type: Up to you, however, Standard_DS3_v2 works fine for this project

Auto Terminate: I normally use 60 for my personal projects. If I have not touched it in one hour, I probably am not going to for a while – shutdown the compute. This is probably not ideal in a profession/work environment, but has been effective for personal project on my subscription.

new_cluster

Once filled out, clicking create will create and start your cluster. This may take a few minutes to create the VMs and network resources. Try not to stare directly at it, it will not speed-up knowing you are watching, in-fact I believe it is the opposite.

running_clusters

Add Python Libraries to Cluster

Once you cluster is running we will want to add a couple of python libraries for this project. Being able to do this so easy is awesome! I have struggle with other solutions managing R,Python,Jar dependencies. Bring it on Data Science team, go ahead and use the 10 variant of R dplyr, tidy or whatever.

We will be adding only two libraries:

  • scikit-image
  • opencv-python

Click on the Azure Databricks icon to go back to the main page.

Azure Databricks link

Then look under New and click Library.

db_new_links

Change the Language to ‘Upload Python Egg or PyPi’ then under PyPi Name type sckit-image and click Install Library.

add_library

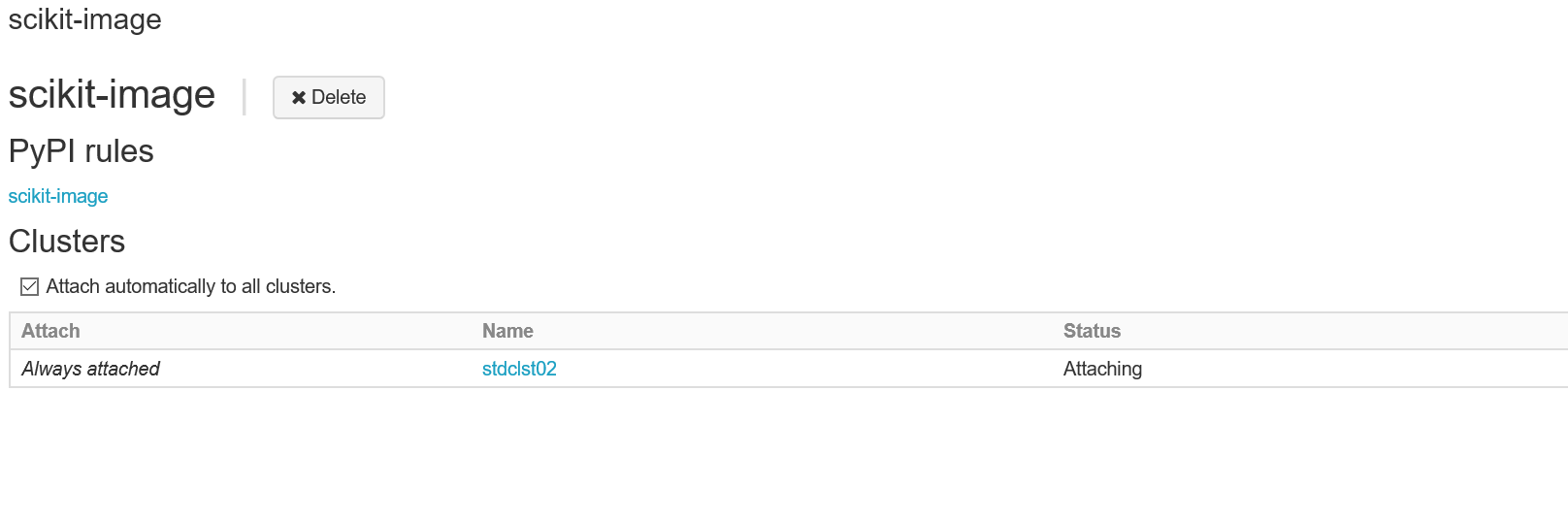

Check Attach automatically to all clusters, if you want this library to always attach itself to the current and new clusters.

lib_attach

This should attach without error. If not add a nice comment or send a nice email, but it really should attach fine. You can specify the version if so desired, but for simplicity we’ll just grab the latest.

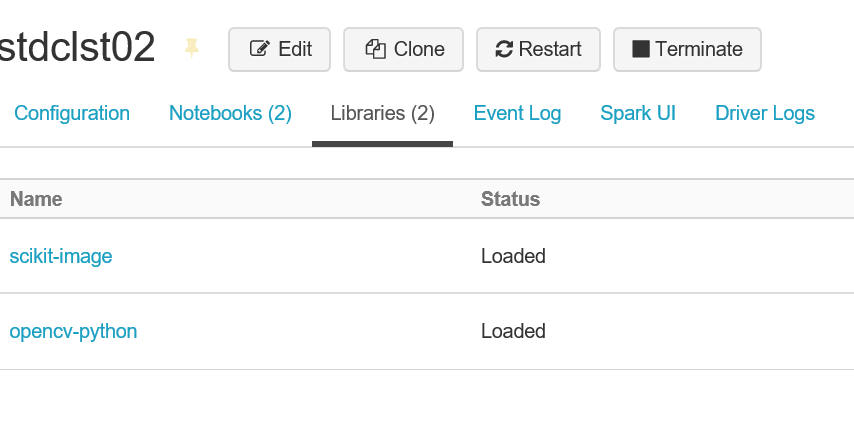

Add OpenCV-python following the same steps.

loaded libs

Image Compare Code

Now for the fun, writing some code and comparing images. First we need to create a new notebook.

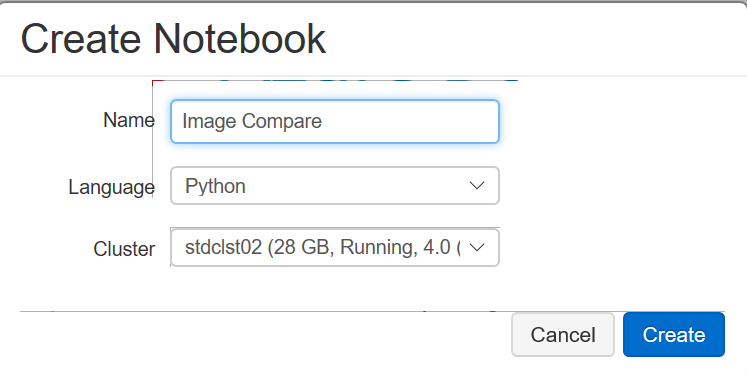

Go back to the main landing page and under New click Notebook. Give the notebook a name, choose Python as the language and select your running cluster to attach to.

create_notebook

github iconThe code, which can be imported directly into Azure Databricks, and images are available on GitHub.

Each code snippet represents a Notebook cell and can be ran individually. You can copy paste each snippet into a cell or import the Image Compare.py file from GitHub into your Azure Databricks workspace.

This code will use the two packages we attached to the cluster, scikit-image (skimage) and Opencv-python (cv2); plus matplotlib  and numpy.

from skimage.measure import compare_ssim
import cv2
import numpy as np
import matplotlib.pyplot as plt



Mixing Languages

The Azure Databricks Notebooks allows us to mix programming languages by specifying a magic command at the beginning of a cell (%python, %md, %scala) Read more on mixing languages.

using %md allow markdown to be used within the Notebook cell.

%md
### Mount Azure Storage

https://docs.azuredatabricks.net/spark/latest/data-sources/azure/azure-storag
e.html
Using %fs we can create an Azure Databricks directory for mounting the images, if it does not already exist.
%fs
# run if dir does not exist
# mkdirs "/mnt/images/"
You will need to update the connection with your Azure Storage Account information: Azure Storage.
Please visit here for steps on creating a Azure Storage Account.
dbutils.fs.mount(source = "wasbs://@.blob.core.windows.net",mount_point = "/mnt/images/",extra_configs = {"fs.azure.account.key..blob.core.windows.net": "})"})
IMAGES_FOLDER = "/dbfs/mnt/images/"

Functions

Crop Function – Removes white space to more effectively scale images.

def crop_image(img):
    #prevent changes to original image
    img_o = img.copy()

    gray = cv2.cvtColor(img_o, cv2.COLOR_BGR2GRAY) # convert to grayscale

    # threshold
    retval, thresh_gray = cv2.threshold(gray, thresh=200, maxval=256, type=cv2.THRESH_BINARY)

    #find black pixels
    points = np.argwhere(thresh_gray==0)
    #store in x, y coords
    points = np.fliplr(points)

    x, y, w, h = cv2.boundingRect(points)

    #expand box and do not allow negative (image may be x,y 0,0)
    x, y, w, h = x-10 if x-10>0 else 0, y-10 if y-10>0 else 0,w+20, h+20
    print(x,y,w,h)

    # create a cropped region of the gray image
    crop = img[y:y+h, x:x+w]

    return crop

Plot Image – Reusable code snippet for code clarity. The site argument is used in part 2 to display the site the image was retrieved from.

def plot_img(figtitle,subtitle,img1,img2,site):

  #create figure with std size
  fig = plt.figure(figtitle, figsize=(10, 5))

  plt.suptitle(subtitle,fontsize=24)

  ax = fig.add_subplot(1, 2, 1)
  # base is hardcoded for img1
  ax.set_title("Base",fontsize=12)
  plt.imshow(img1)
  plt.axis("off")

  ax = fig.add_subplot(1, 2, 2)
  # site is used in site iteration
  ax.set_title(site,fontsize=12)
  plt.imshow(img2)
  plt.axis("off")

  display(plt.show())

In part 1 we will just hardcore the images, both the base and compare.

img1 = IMAGES_FOLDER  + "PAM_Original_6_OZ_ST.jpg"
orig_img =  cv2.imread(img1)

img2 = IMAGES_FOLDER  + "PAM_Original_6_OZ.jpg"
comp_img = cv2.imread(img2)
I decided to use PAM as I have doing more cooking now that the warmer months are in. PAM is great for cooking and great for image compare as there are so many types of the product (coconut oil PAM).

plot_img("Image Compare Orig" ,"Original Images",cv2.cvtColor(orig_img, cv2.COLOR_BGR2RGB),cv2.cvtColor(comp_img, cv2.COLOR_BGR2RGB),"Compare")

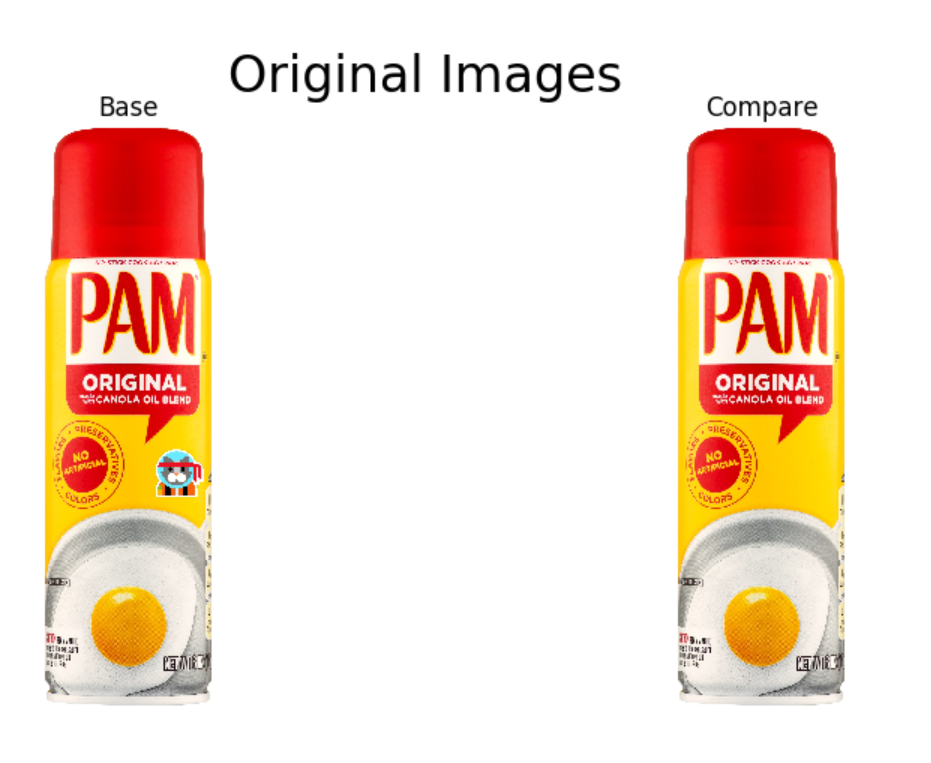

orig_part1_pam


Oddly enough the PAM I use is also for astronaut ninja cats (very hard to find in stores), other than that, the images are identical.

Crop to Images – Remove white space

SSIM Scores are biased by whitespace


print(orig_img.shape)
print(comp_img.shape)

orig_img = crop_image(orig_img)
comp_img = crop_image(comp_img)

print(orig_img.shape)
print(comp_img.shape)
(2500, 720, 3) (2500, 720, 3) 0 0 740 2519 0 0 740 2519 (2500, 720, 3) (2500, 720, 3)

Resize Images for scoring

Size to smallest image


#identify smallest image size
small = min(orig_img.shape,comp_img.shape)[:2][::-1]
print(small)
(720, 2500)

#resize to smallest image
orig_img = cv2.resize(orig_img,dsize =small)
comp_img = cv2.resize(comp_img,small)

print(orig_img.shape)
print(comp_img.shape)
(2500, 720, 3) (2500, 720, 3)

When comparing images that are not the same file, cropping and scaling can help you achieve better results.

Generate Multichannel (full color) SSIM – Image Compare

SSIM Scores range from -1 to 1, with 1 indicating a “perfect match”


(score, diff) = compare_ssim(orig_img, comp_img, full=True,multichannel=True)

plot_img("Image Compare Multi","SSIM: %.2f" % (score),cv2.cvtColor(orig_img, cv2.COLOR_BGR2RGB),cv2.cvtColor(comp_img, cv2.COLOR_BGR2RGB),"Compare")

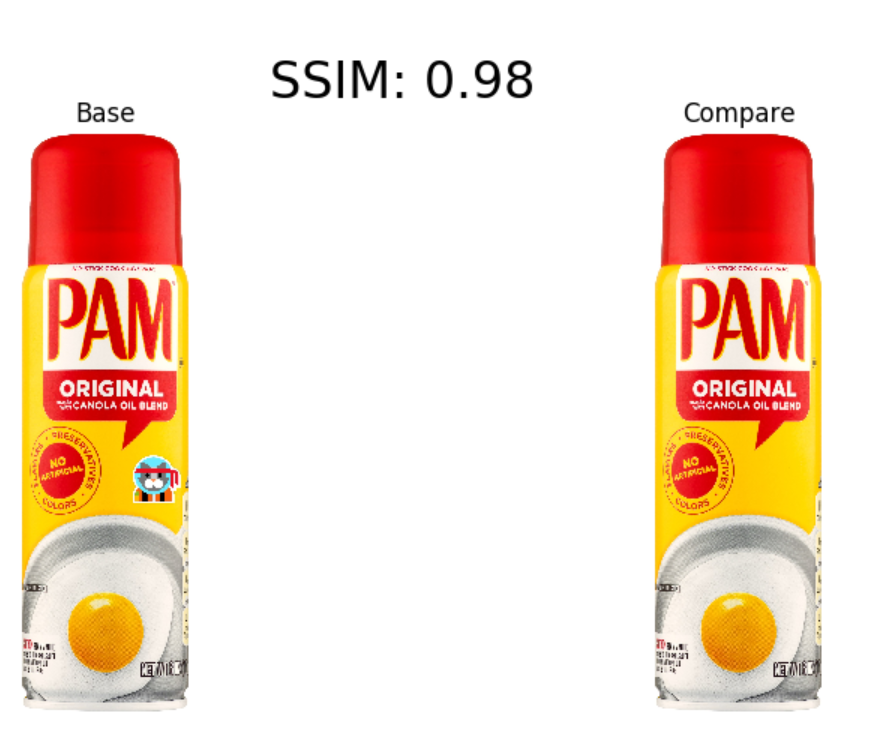

color_ssim_part1_pam


A multichannel SSIM of .98, yes these images are nearly identical.

Greyscale Image Compare – Normalize color difference


#create images for gray compare
gray1 = cv2.cvtColor(orig_img.copy(), cv2.COLOR_BGR2GRAY)
gray2 = cv2.cvtColor(comp_img.copy(), cv2.COLOR_BGR2GRAY)


(score, diff) = compare_ssim(gray1, gray2, full=True,multichannel=False,gaussian_weights=True)

plot_img("Image Compare Gray" ,"Gray SSIM: %.2f" % (score),cv2.cvtColor(gray1, cv2.COLOR_GRAY2BGR),cv2.cvtColor(gray2, cv2.COLOR_GRAY2BGR),"Compare")

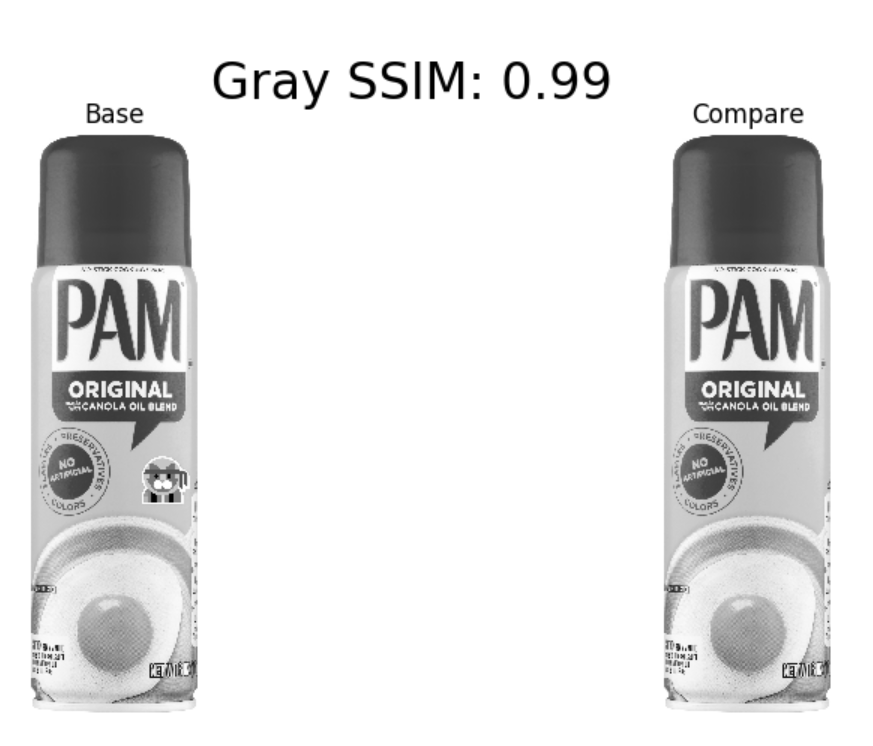

gray_ssim_part1_pam


Because there is really no difference with the images removing the multichannel does not improve the SSIM much.

Not the Same Image

Let’s see how the same code looks if we compare two images that are slightly different. This time I am going to compare an 8 OZ to a 6 OZ PAM. And because the image sizes are not the same cropping and scaling are required from comparison.

img1 = IMAGES_FOLDER  + "PAM_Original_8_OZ.jpg"
orig_img =  cv2.imread(img1)

img2 = IMAGES_FOLDER  + "PAM_Original_6_OZ.jpg"
comp_img = cv2.imread(img2)
As you can see they are different.
plot_img("Image Compare Orig" ,"Original Images",cv2.cvtColor(orig_img, cv2.COLOR_BGR2RGB),cv2.cvtColor(comp_img, cv2.COLOR_BGR2RGB),"Compare")

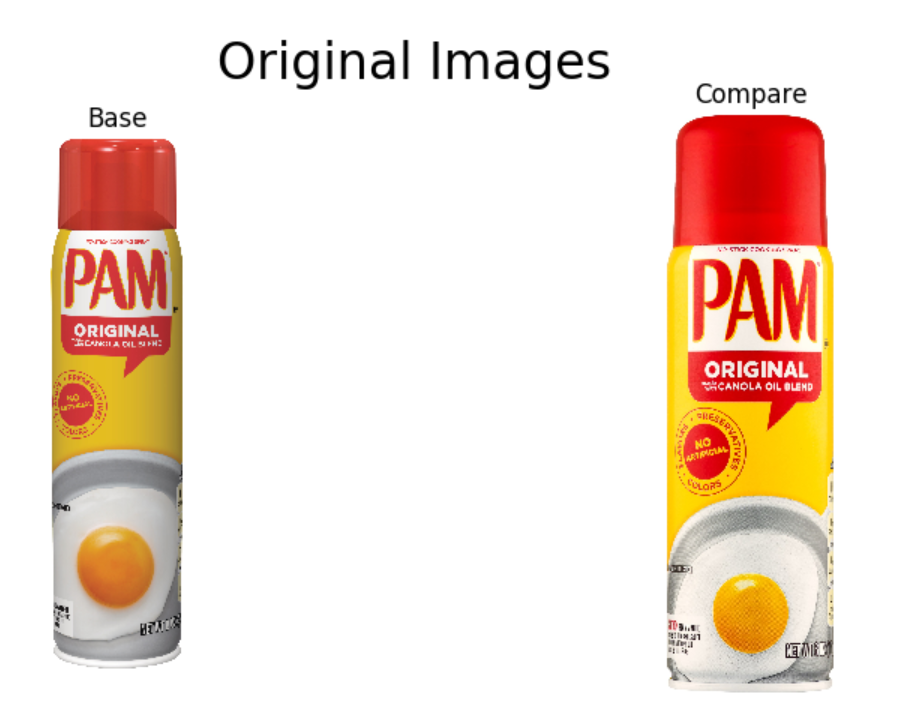

orig_part1_pam_8


Crop to Images – Remove whitespace

SSIM Scores are biased by whitespace


print(orig_img.shape)
print(comp_img.shape)

orig_img = crop_image(orig_img)
comp_img = crop_image(comp_img)

print(orig_img.shape)
print(comp_img.shape)
(3000, 3000, 3) (2500, 720, 3) 1116 0 767 3019 0 0 740 2519 (3000, 767, 3) (2500, 720, 3)

Resize Images for scoring

Size to smallest image


#identify smallest image size
small = min(orig_img.shape,comp_img.shape)[:2][::-1]
print(small)
(720, 2500)

#resize to smallest image
orig_img = cv2.resize(orig_img,dsize =small)
comp_img = cv2.resize(comp_img,small)

print(orig_img.shape)
print(comp_img.shape)
(2500, 720, 3) (2500, 720, 3)

Generate Multichannel (full color) SSIM – Image Compare

SSIM Scores range from -1 to 1, with 1 indicating a “perfect match”


(score, diff) = compare_ssim(orig_img, comp_img, full=True,multichannel=True)

plot_img("Image Compare Multi","SSIM: %.2f" % (score),cv2.cvtColor(orig_img, cv2.COLOR_BGR2RGB),cv2.cvtColor(comp_img, cv2.COLOR_BGR2RGB),"Compare")

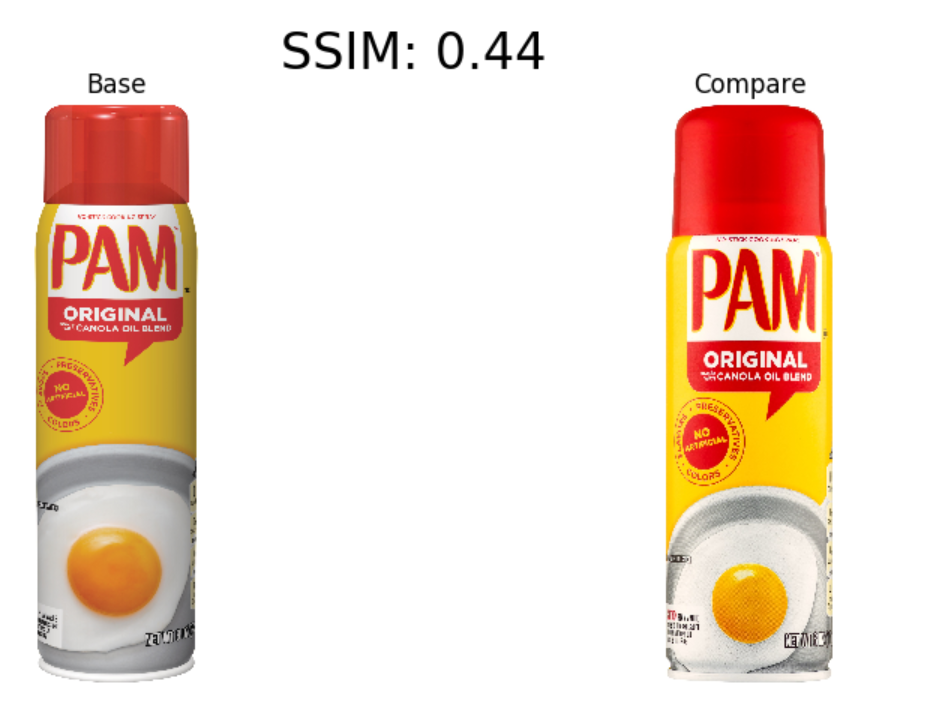

 color_ssim_part1_pam_8


A SSIM of .44, not great, but we saw they were different.

Greyscale Image Compare – Normalize color difference


#create images for gray compare
gray1 = cv2.cvtColor(orig_img.copy(), cv2.COLOR_BGR2GRAY)
gray2 = cv2.cvtColor(comp_img.copy(), cv2.COLOR_BGR2GRAY)


(score, diff) = compare_ssim(gray1, gray2, full=True,multichannel=False,gaussian_weights=True)

plot_img("Image Compare Gray" ,"Gray SSIM: %.2f" % (score),cv2.cvtColor(gray1, cv2.COLOR_GRAY2BGR),cv2.cvtColor(gray2, cv2.COLOR_GRAY2BGR),"Compare")

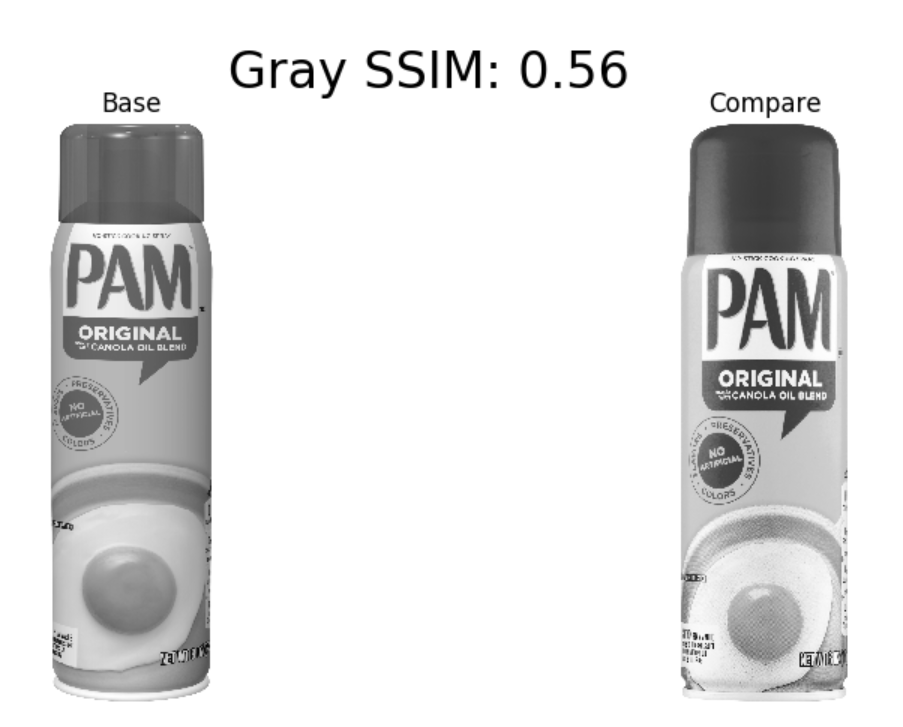

gray_ssim_part1_pam_8

Converting to greyscale improves the SSIM a little.

Finally when all done unmount the Azure Databricks directory.

dbutils.fs.unmount("dbfs:/mnt/images/")

Originally when I found the 8 OZ image it was marked as 6 OZ. In Part 2 we will use Bing Search to pull images from the web, as opposed to just using static images. In Part 3 we will be using Azure Cognitive Services to pull the text from the images, which will let us know we are comparing a 8 OZ to a 6 OZ.
